GCP Distribution in the Survey Area
This article will describe the best practices for marking and measuring Ground Control Points based on the area to be measured.
For rectangular areas of interest, we recommend that a minimum of 5 ground control points are placed every 400 feet for non-RTK flights and every 1000 feet for RTK flights. This would place a control point in each corner and one near the center. The absolute minimum of control points is 3.

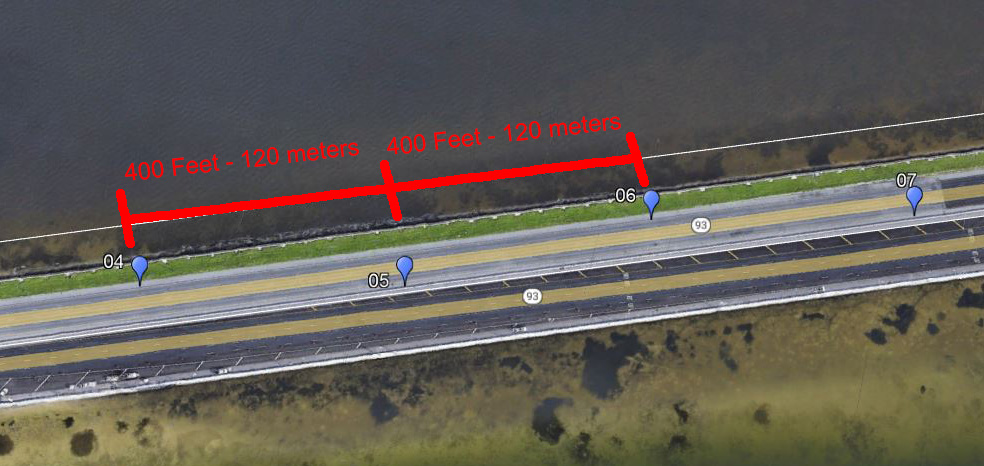

For highway projects, we recommend a ground control points is placed on each side of the highway project, 400 feet apart for non-RTK flights and 1000 feet for RTK flights. The control on each side of the highway should be offset and placed on each side of the highway. This will ensure that both sides of the highway have ideal coverage. For RTK flights these distances can be increased to 1000 feet.
GCP Distribution for elongated areas

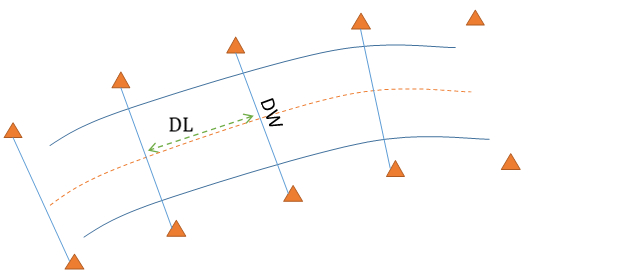

Ground control points spreading recommendation in relation to desired topographic mapping scale for elongated projects:
|
Num. |
Map Scale |
2 GCP in both project side in each DL or DW [m] |
Accuracies in MSE in 95% [cm] |
Pixel foot print [cm] |
|
1 |
1:250 |
50.0 |
± 12 |
2.5 |
|
2 |
1:500 |
100.0 |
± 25 |
5.0 |
|
3 |
1:1250 |
250.0 |
± 30 |
12.5 |
|
4 |
1:2500 |
500.0 |
± 40 |
25.0 |
|
5 |
1:5000 |
1000.0 |
± 80 |
50.0 |
|
6 |
1:10,000 |
2000.0 |
± 120 |
100.0 |
GCP Distribution for polygonal areas
Ground control points distribution recommendation in relation to desired topographic mapping scale for polygonal (area) projects:
|
Num. |
Map Scale |
1 GCP in each square DL X DL in [m] |
Accuracies in MSE in 95% [cm] |
Pixel foot print [cm] |
|
1 |
1:250 |
50.0 |
± 12 |
2.5 |
|
2 |
1:500 |
100.0 |
± 25 |
5.0 |
|
3 |
1:1250 |
250.0 |
± 30 |
12.5 |
|
4 |
1:2500 |
500.0 |
± 40 |
25.0 |
|
5 |
1:5000 |
1000.0 |
± 80 |
50.0 |
|
6 |
1:10,000 |
2000.0 |
± 120 |
100.0 |
- Convex hull polygon consisting of GCP’s must cover the entire ROI circumference.
- User must add one control point in each DLxDL.
