Water Flow Reports in Civil Engineering Projects: An Essential Guide

Water Flow Reports in Civil Engineering Projects: An Essential Guide

Water flow reports play a critical role in civil engineering, providing insights into water movement across a project area. They are essential for effective planning and management, particularly for projects involving roads, bridges, land development, etc. Understanding the dynamics of water flow helps engineers mitigate potential risks, ensure safety and sustainability throughout a project’s lifecycle, and enable quality control and verification of construction outcomes.


The Need for a Water Flow Report

Water flow reports are indispensable for civil engineering projects as they address multiple concerns:

  • Flood Risk Mitigation: They provide an understanding of flood-prone areas, enabling engineers to design mitigation measures like retention ponds or improved drainage channels.

  • Quality Assurance and Verification: They provide a means to visualize the direction and slope of water flow, allowing for verification of expected water behavior and early identification of potential issues in drainage and runoff management.

  • Environmental Impact: These reports ensure that the construction will not negatively impact surrounding ecosystems by changing natural watercourses or causing erosion.

DatuBIM's Water Flow Report

The DatuBIM water flow report provides an advanced and user-friendly way to visualize water movement across a project area. It features two visual modes to demonstrate water flow data, making it easier for engineers to comprehend complex hydrological information. Additionally, the setup dialog is designed to be straightforward, similar to other reports within DatuBIM, allowing users to configure parameters quickly and efficiently.

The two visual modes include:

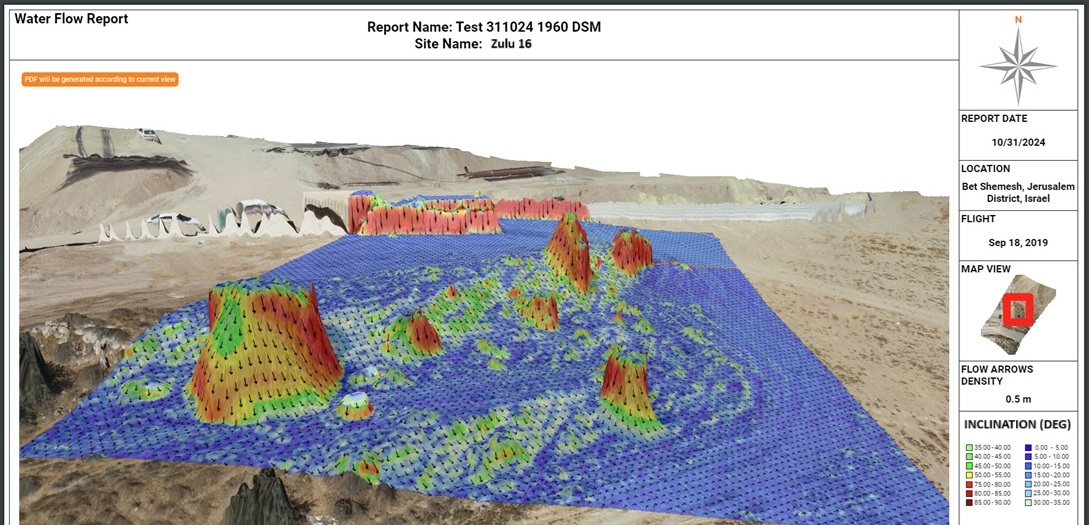

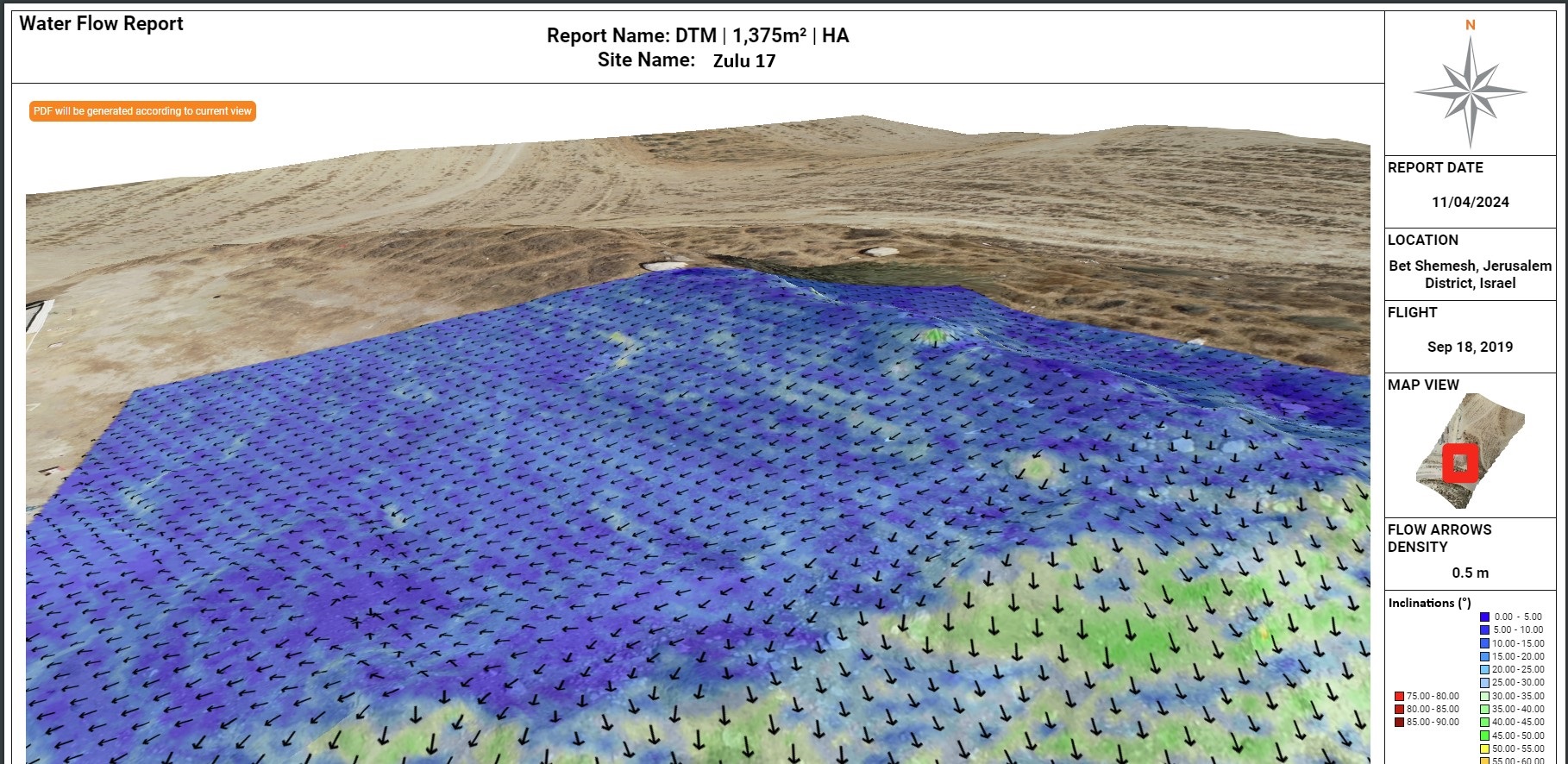

  • Flow Direction Arrows with Heatmap: The heatmap shows slope percentages, with a resolution of 0.2m at the highest zoom level, and coarser resolution as users zoom out. Black arrows emphasize the flow direction, providing a clear understanding of how water moves across the surface.

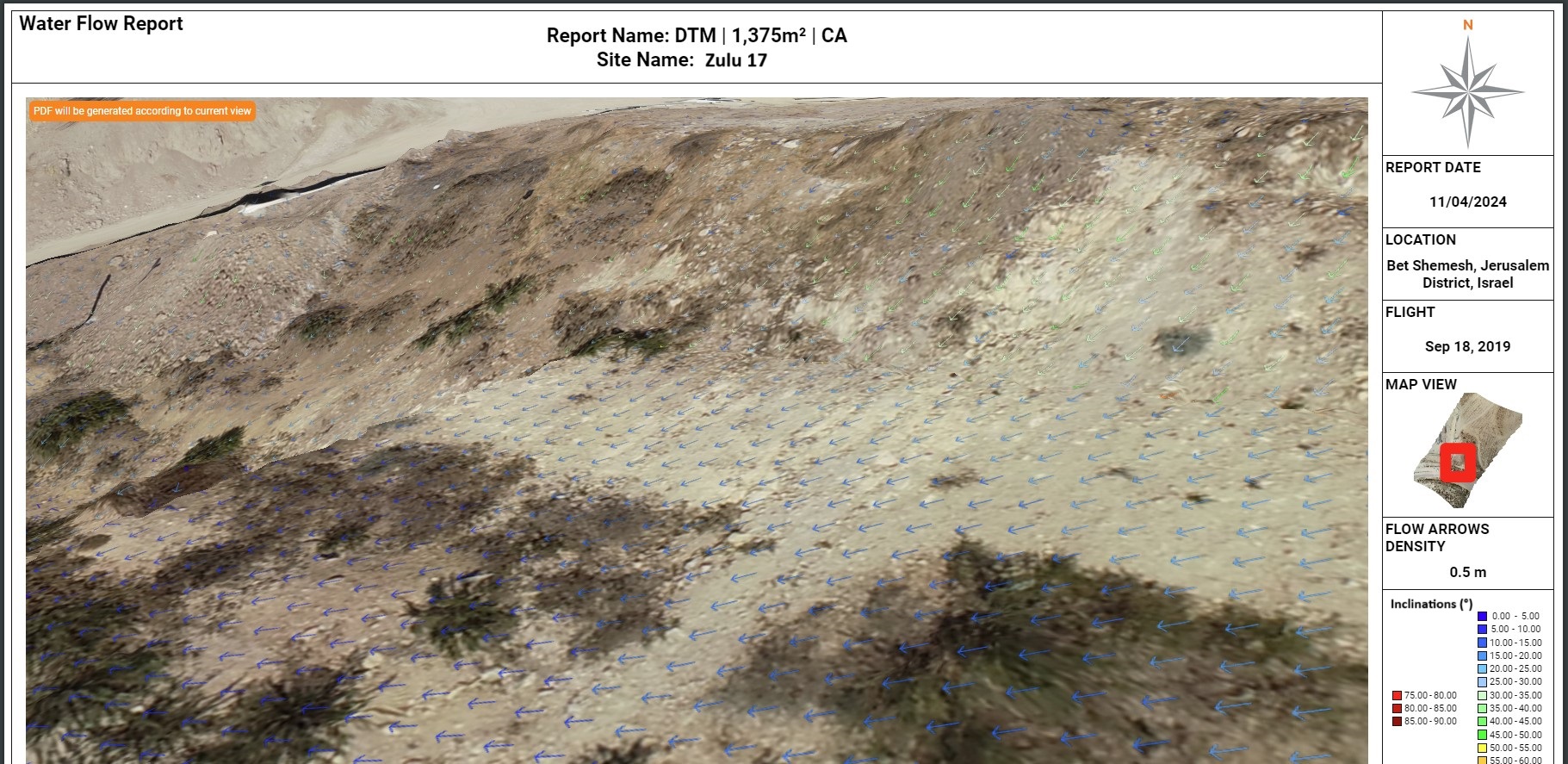

  • Colored Arrows Without Heatmap: In this mode, arrows are colored based on slope degree, with 18 distinct color levels ranging from 0° to 90° (5° increments). The system automatically adjusts the density of arrows based on the zoom level, providing a focused and insightful visualization of flow direction and slope steepness. The absence of the heatmap also helps to better visualize the underlying model, allowing users to clearly see the terrain and other features without the heatmap overlay.


DatuBIM’s waterflow report simplifies the interpretation of hydrological data, making it accessible even for those without extensive waterflow analysis experience.

Real-World Use Cases

Consider a road construction project where effective stormwater management is crucial to ensure safety. Roads cannot withstand localized ponding, as it poses significant safety risks. Using DatuBIM's waterflow report, civil engineers can easily visualize the direction and slope of water flow across the road area, identifying potential areas at risk of water accumulation. This allows them to verify that the road is balanced correctly, inclined in the proper direction, and free of undulations that might cause localized ponding, ensuring that the road is constructed to be safe for drivers and free from hazardous water accumulation.

Another important use case comes from a major client of Datumate who is managing a large earth-moving project in an area prone to stormy weather. Using the DatuBIM water flow report, they strategically planned the placement of their limited number of pumps to ensure the most efficient use. By identifying the areas most likely to experience significant water accumulation, they were able to position the pumps in locations where they would have the greatest effect, minimizing the risk of flooding and ensuring that earth-moving activities could continue with minimal disruption.

How to Set Up the Water Flow Report

Generating the water flow report in DatuBIM is incredibly easy:

  1. Simple Process: Draw the region of interest (ROI), choose the presentation format, and let DatuBIM do the rest.
  2. Exportable Reports: Once generated, the report can be shared as a link through the platform or exported as a PDF, making it easy to share with stakeholders.
  3. Orthophoto Visualization: Provides a clear view of the site with water flow overlay as a heatmap or colored arrows.

The key difference between the two presentation formats is that the slope heatmap with arrows uses the heatmap to symbolize the slopes while the arrows indicate the direction, whereas the colored arrows use their color to symbolize the slopes along with the direction. The advantage of the first format is a clearer visual representation of the slopes, while the second format does not obscure the underlying model.

The setup process allows the user to:

  1. Select a surface
  2. Choose the report area
  3. Rotate the selected area to fit the report structure
  4. Select DTM or DSM if the surface is a flight
  5. Choose the presentation format
  6. Customize the report format with logos, signatures, and comments

Summary: Enhancing Your Work Flow with DatuBIM

A well-prepared water flow report is a cornerstone for ensuring the safety, efficiency, and sustainability of civil engineering projects. The DatuBIM water flow report offers a modern, easy-to-use solution for visualizing and analyzing water flow in civil engineering projects. With its dual visualization modes and simple setup, it provides engineers with the insights they need to make informed decisions, ensuring long-term resilience against environmental changes—making it an indispensable tool for successful project completion.

Get Started Today

Ready to enhance your project workflow with advanced water flow analysis? Get started with DatuBIM's water flow report today and see how it can help you make data-driven decisions for your next civil engineering project.

If you have any questions or need assistance, our support team is here to help.
At Datumate, we’re dedicated to providing innovative solutions that meet the evolving needs of our clients. We believe these new features will significantly enhance your ability to manage and execute your projects with precision and confidence.
Thank you for being a valued member of the Datumate community. We look forward to your feedback and to continuing to support your success.
